Nested Set Org Chart

Preface

Nested Set Org Chart is a full-stack explorer for company hierarchies. Instead of adjacency lists or recursive CTEs for every query, the tree lives as a Nested Set in PostgreSQL: each node stores level, iLeft, and iRight, so an entire subtree is one range filter away.

The stack is a Django REST API (JWT, Swagger) plus a React/Vite SPA with a folder tree, force-directed graph, and EN/IT labels for org units — departments like Marketing, Sales, and Helpdesk under a generic company root.

nested-set-hierarchies-roles on GitHub

https://github.com/lucaimbalzano/nested-set-hierarchies-roles

The problem

Org charts are trees. The usual options each have a cost:

• Adjacency list (parent_id) — simple writes, painful deep reads (recursive queries)
• Materialized path — string prefixes, awkward rebalancing
• Nested Set — denser writes when inserting, but O(1)-style subtree reads with two integers

This project leans into Nested Set end to end: seed a sample company tree, expose range queries over the API, then rebuild parent/child edges in the UI for graph and tree views — without a parent_id column.

Nested Set model

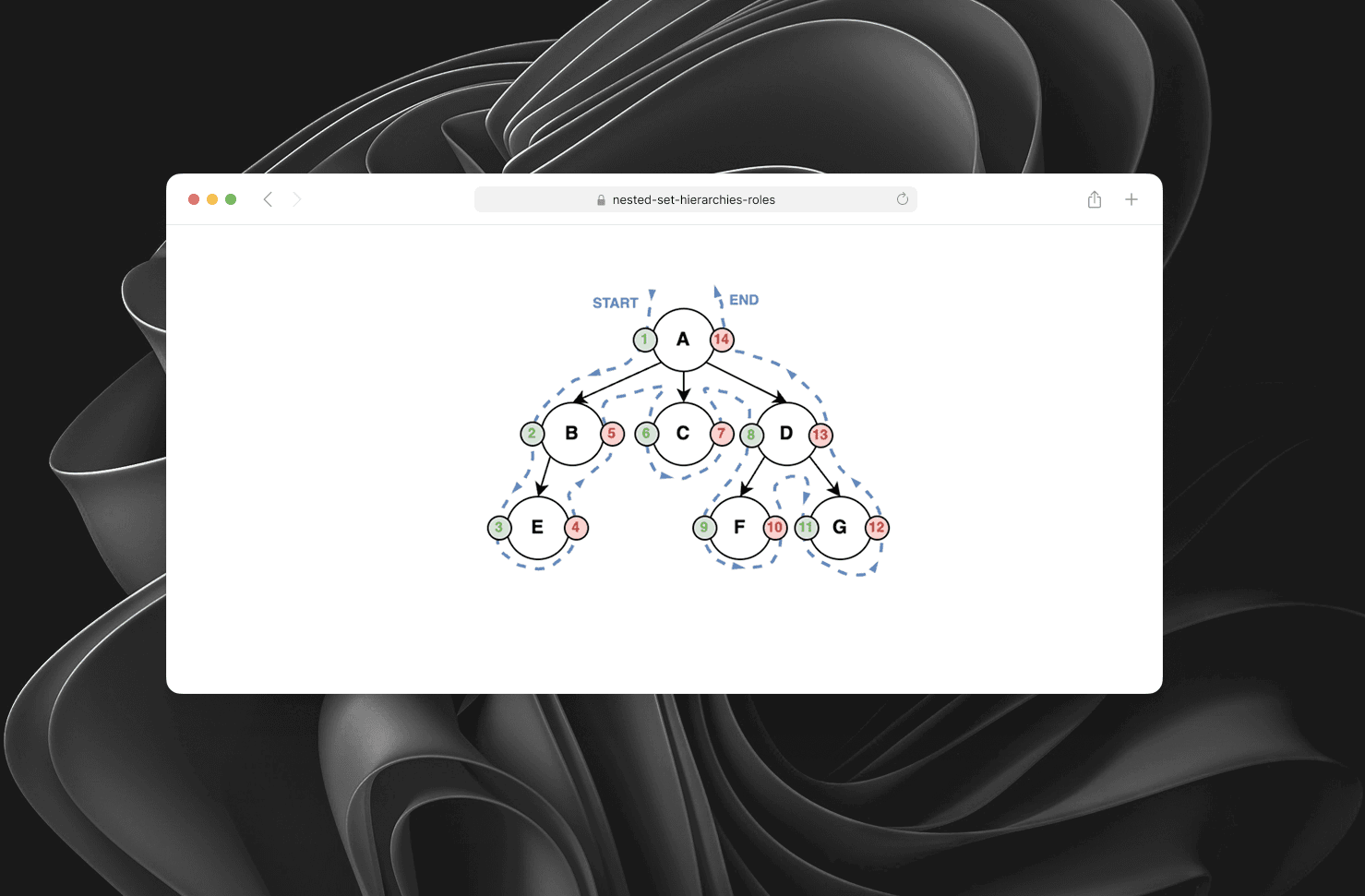

Each node is a closed interval on a depth-first traversal:

Invariants used everywhere:

• Descendants of N → iLeft > N.iLeft AND iRight < N.iRight
• Parent of N → unique node with level == N.level - 1 whose bounds enclose N
• Direct children → same range filter plus level == N.level + 1

Localized names live in a related table (language, nodeName) → node, so the same tree serves English and Italian labels.

Product preview

Tree browser on one side, force-directed org graph on the other — both driven by the same Nested Set payload.

Folder structure

Monorepo-style layout: Django API at the root, React SPA in org-view-flow/, Docker for Postgres + services.

Architecture

┌──────────────────────┐         ┌─────────────────────────────┐
│  org-view-flow       │   API   │  Django · DRF · SimpleJWT   │
│  React · Vite · TS   │ ──────► │  Nested Set · PostgreSQL    │
│  TanStack Query      │         │  Swagger (drf-spectacular)  │
│  Zustand · i18next   │         │  Cors · Docker Compose      │
│  Canvas force graph  │         │                             │
└──────────────────────┘         └─────────────────────────────┘

Backend

• Django 5 + DRF list/detail/search endpoints under /api/nodes/
• JWT signup/login; docs at /api/docs/
• Nested Set seed data for a sample company hierarchy
• Custom 0-based pagination (page_num / page_size)

Frontend

• React 18 + Vite + Tailwind + shadcn/ui
• Folder tree + custom canvas force layout (concentric levels)
• Client-side parent recovery from (level, iLeft, iRight)
• EN/IT via react-i18next

Under the hood

Three of the geekier bits — range queries, parent reconstruction, and a Nested Set–aware force layout. Code blocks use the same titled CodeBlock UI as the rest of the site.

Subtree count & search with two inequalities

Classic Nested Set: no recursion. Descendants of a node are everything strictly inside its [iLeft, iRight] interval; keyword search reuses the same bounds.

# Single node: count ALL descendants via nested-set bounds
result = {
    "node_id": node.id,
    "name": name_obj.nodeName,
    "children_count": NodeTree.objects.filter(
        iLeft__gt=node.iLeft, iRight__lt=node.iRight
    ).count(),
}

# Search: keyword match anywhere under parent's [iLeft, iRight] interval
children = NodeTree.objects.filter(
    iLeft__gt=parent_node.iLeft,
    iRight__lt=parent_node.iRight,
    names__nodeName__icontains=keyword,
    names__language=language,
).distinct()

parent_matches = NodeTree.objects.filter(
    id=parent_node.id,
    names__nodeName__icontains=keyword,
    names__language=language,
).distinct()

return (children | parent_matches).order_by("id")

Rebuild parents without a parent_id column

The API returns flat Nested Set rows. The SPA recovers the tree graph with the enclosure rule: parent is the unique node one level up whose interval contains the child.

export const getParentId = (nodes: NodeTree[], node: NodeTree): number | null => {
  const parent = nodes.find(
    (parent) =>
      parent.level === node.level - 1 &&
      parent.iLeft < node.iLeft &&
      parent.iRight > node.iRight
  )
  return parent?.id || null
}

export const getChildrenCount = (nodes: NodeTree[], node: NodeTree): number => {
  return nodes.filter(
    (child) =>
      child.level === node.level + 1 &&
      child.iLeft > node.iLeft &&
      child.iRight < node.iRight
  ).length
}

const processedNodes = nodes.map((node) => ({
  ...node,
  parentId: getParentId(results, results.find((n) => n.id === node.id)!),
  childrenCount: getChildrenCount(results, results.find((n) => n.id === node.id)!)
}))

Force layout from Nested Set edges

Nodes seed on concentric rings (radius ≈ level). Links come from the reconstructed parentId, then a light spring simulation keeps the org chart readable.

const nodes = allNodes.map((node) => {
  const levelNodes = allNodes.filter((n) => n.level === node.level)
  const levelIndex = levelNodes.findIndex((n) => n.id === node.id)
  const angleStep = (2 * Math.PI) / levelNodes.length
  const radius = node.level * 120 + 80

  return {
    id: node.id,
    name: node.name,
    level: node.level,
    x: Math.cos(levelIndex * angleStep) * radius,
    y: Math.sin(levelIndex * angleStep) * radius
  }
})

// Links reconstructed from nested-set parentId
const links = allNodes
  .filter((node) => node.parentId !== null)
  .map((node) => ({
    source: nodes.find((n) => n.id === node.parentId) || node.parentId,
    target: nodes.find((n) => n.id === node.id) || node.id
  }))

Features

Tech stack

Django

API framework

PostgreSQL

Nested Set store

React

SPA UI

TypeScript

Typed frontend

Vite

Frontend tooling

Tailwind CSS

Styling + shadcn/ui

Docker

Local stack

Open source & links

Source, Makefile targets (make up, make test, make frontend), and Swagger live in the repo.

View on GitHub

https://github.com/lucaimbalzano/nested-set-hierarchies-roles

If you care about tree algebra in SQL as much as pretty org charts, this is the project where Nested Set stops being a textbook footnote and becomes the API contract.
